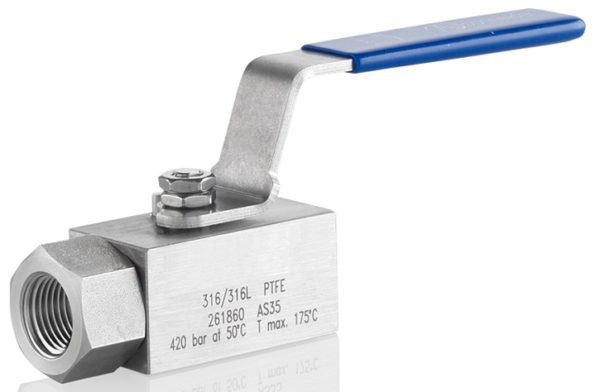

High Pressure Ball Valve V02

The Ashcroft® high pressure ball valve-V02 provides systems with a quick, safety shutoff to isolate the process from the instrument assembly during shutdown and maintenance periods.

GET A QUOTE
VIEW DATASHEET
Key Features:
  • 316L stainless steel construction
  • 90° turn opens or closes valve quickly
  • 10mm bore hole reduces clogging
  • Floating ball design provides bi-directional isolation
  • PTFE packing
  • Supplied with wetted parts according to NACE MR0175/MR0103
Applications:

Process Markets:
Oil & Gas
Chemical & Petrochemical
Power Plants
Water & Wastewater
Mining

Specifications

Data Sheets & Instruction Manuals

Drawings & Product/Technical Information

Process Connection
½ NPT Female or ½ NPT Male

Construction Material
316L Stainless Steel

Maximum Pressure Rating
6,092 psi

Maximum Temperature Rating
347°F (175°C)
