205 In-Line Saddle Diaphragm Seal

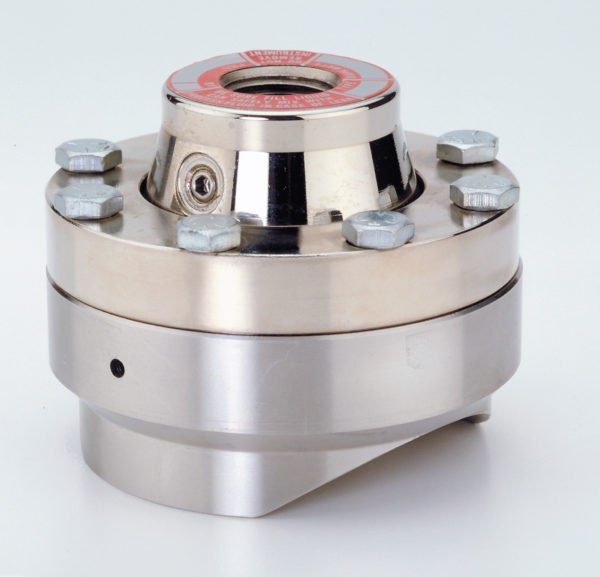

The Ashcroft® 205 in-line saddle diaphragm seals protect pressure measuring instruments. Welded directly onto process piping, it is used to prevent process clogging or accumulation. An ideal choice for satisfying challenging installation requirements.
Key Features:
- 316L stainless steel top housing (standard)
- Wide selection of diaphragm and lower housing materials
- Diaphragm welded (metallic) or bonded (elastomer) to top housing
Applications:
Process Market:
Oil and Gas
Refineries
Chemical and Petrochemical
Water and Wastewater
Process Applications:
Oil and Gas Transportation-Pipelines
NACE Compliant Processes (sour gas separation)
Biogas and Biodiesel
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Process Connection Size
Saddle for 3" or larger pipe
Instrument Connection
¼ or ½ NPT Female
Added Tolerance
±0.5% typical
Connection Style
Saddle Weld
Pressure Rating
2,500 psi
