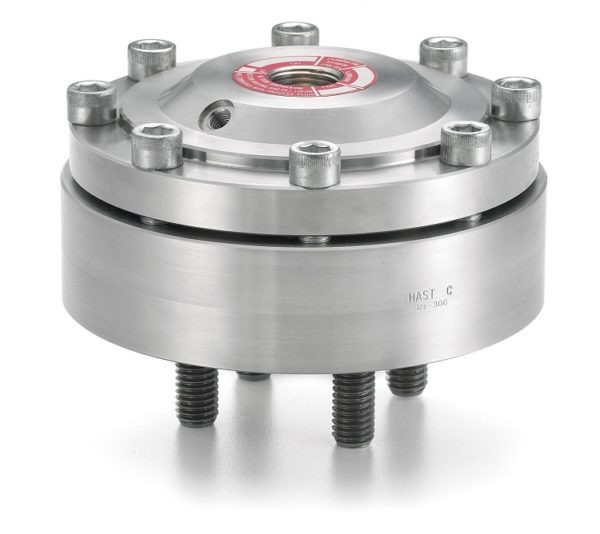

702-703 Flanged High Displacement Diaphragm Seals
The Ashcroft® 702 and 703 high-displacement diaphragm seals are used with low differential pressure gauges rated for elevated static pressures up to 750 psi. Used to ensure material compatibility, they are also applied when process media exhibit pulsation or the potential to clog an instrument connection. An ideal product for satisfying low pressure measurement needs.
Key Features:
- Wide selection of diaphragm and lower housing materials
- Enlarged welded diaphragm; high displacement allows high sensitivity to pressure fluctuations
- Flushing port (type 703) provides easy cleaning / flushing due to process media prone to clogging
Applications:
Process Market:
Oil and Gas
Refineries
Chemical and Petrochemical
Water and Wastewater
Process Applications:
Oil and Gas Racking
NACE Compliant Processes (Sour Gas Separation)
Bioassay and Biocides
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Process Connection Size
½, ¾, 1, 1½, 2 or 3 NPS
Instrument Connection
¼ or ½ NPT Female
Added Tolerance
±0.5% typical
Connection Style
702: Flanged
703: Flanged with flushing port
Flange
150, 300 & 600 class
Flange Ratings (MAWP)
Per ASME B16.5
