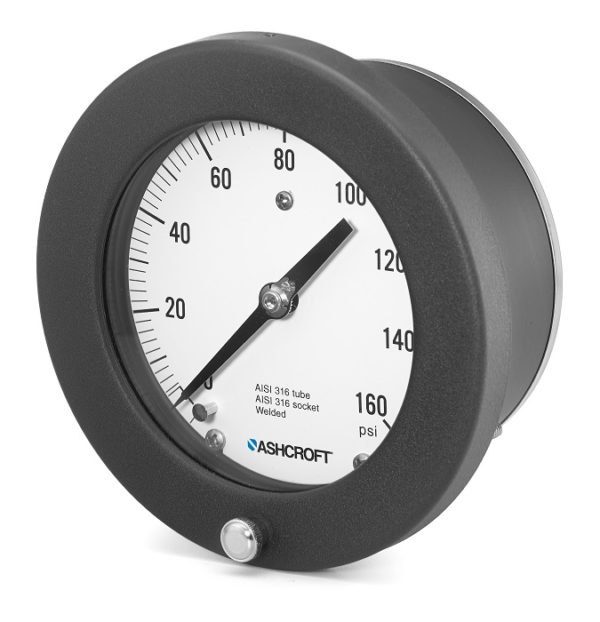

1017 Pressure Gauge
The Ashcroft® 1017 is an economical ASME style pressure gauge with a 4 1/2″ and 6″ sizes for panel mount applications. The 1017 has a solid front case design, 1% accuracy and numerous protective features for corrosive or other challenging media applications.
Key Features:
- Wide selection of Bourdon tube materials, pressure connections and pressure ranges
- Solid-front case design for safety
- PLUS!™ Performance (option)
Applications:
Industrial Market:
Deionized Water
Refrigeration
Hydraulics and Pneumatics
Specialized OEM Equipment
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±1.0% of span (ASME B40.100 Grade 1A)
Size
4 1/2"
6"
Process Connection Size
1/2 NPT Male
1/4 NPT Male
Process Connection Location
Back
Pressure Ranges
Vacuum, compound, 20,000 PSI
Case Style
Solid Front
Weather Protection
Dry case: Case not sealed, recommended for weather protected environment only
Movement
Adjustable
Window
Glass
Mounting
flush
Stem or Surface
Dampening
PLUS!™ Performance, throttle screw
