1036 Sanitary Pressure Gauge

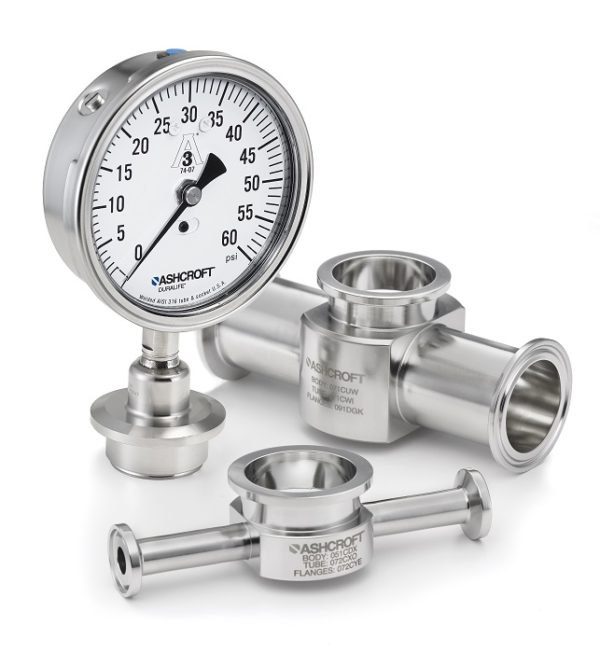

The Ashcroft® 1036 inline 3A approved sanitary gauge satisfies stringent sanitary requirements with its unique design. Mated with the type 1037 Inline fitting, this assembly virtually eliminates process deadleg, assuring contamination is minimized. An ideal instrument for reliability and process integrity. Available with material traceable certification to EN 10205: 2004 3.1. An electropolished diaphragm and housing make it an ideal solution for applications in the food, pharmaceutical and bio-technical industries.
Key Features:
- Clean or steam in place (CIP/SIP)
- 3 1/2″ dial size gauge with polysulfone window option can be autoclaved or sterilized
- Easy Zero™ provides external adjustability of instrument span (3½˝ dial)
- 12-20 RA (microinches) electropolished diaphragm surface
- Material certificates and certificate of conformance supplied as standard to EN 10204:2004 3.1
- True Zero™ reduces reading errors by using a “zero box” instead of conventional dial pins; this ensures gauge safety, integrity and system control
- PLUS!™ Performance (option)
- Autoclave or sterilize with polysulfone window
Applications:
Industrial Market:
- Specialized OEM Equipment
Medical and Life Sciences:
- Food and Dairy
- Pharmaceutical
- Biotech
- Medical Equipment
- Filtration
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
2½˝, 3½˝: All ranges over 100 psi Dry: ±1.5%, Liquid Filled or XLL: ±2.0%
2½˝, 3½˝: All ranges to 100 psi Dry: ±2%, Liquid Filled or XLL: ±2.5%
Size
3 1⁄2˝
Pressure Ranges
Vacuum to 600 psi
Process Connection Size
1 1/2˝ Triclamp®
Process Connection Location
Lower
Case Style
Open Front
Window
Polycarbonate
Polysulfone Window
Safety Glass
Weather Protection
IP65
Dampening
Liquid fill or PLUS!™ Performance (Design is not recommended for gauges expected to be exposed to temperatuire over 200°F (93°C). This includes gauges subject to autoclaving.
