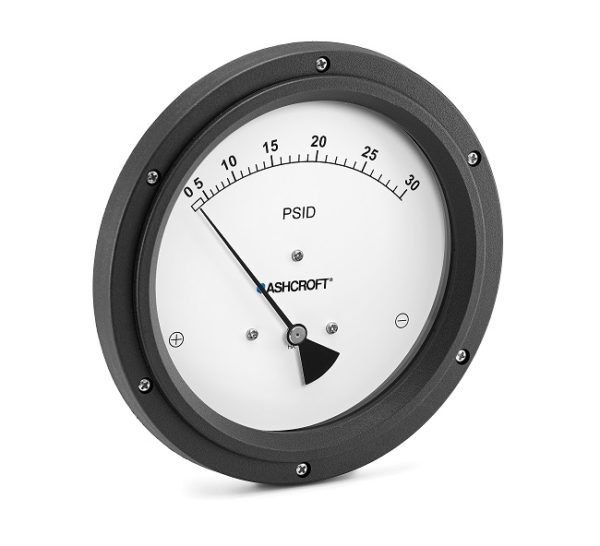

1143 Differential Pressure Gauge
The Ashcroft® 1143 gauges are a very economical option for measuring very small differential pressure and where no media migration is permissible. Uses a convoluted diaphragm design and can be utilized with compatible fluids or gases with ranges as low as 1 in. H2O (25 mw) and where temperature fluctuations may cause readability concerns due to condensation.
Key Features:
- Glass filled nylon case
- Easily removable window for wipe-down
- Direct mount or panel mount as standard
- High static pressure capability of 500 psi
- Superior magnets for smoother pointer motion
- Reed switches (optional) for direct system control
Applications:
Process and Industrial Market:
Liquid Level Measurement
Collector or Bag Filter Monitoring
Filtration Monitoring
Flow Measurement
Specifications
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±2% ascending pressure full scale differential
Dial/Case
4½˝, 6˝
Pressure Ranges
0 - 1 in. H2O to 25 in. H2O
Static Pressure
500 psid
Process Connection Size
¼ NPT Female (STD.), 1⁄8 NPT or ½ NPT Female, Adapter (OPT.)
Process Connection Location
In-line, Lower, back
Window
Glass
Case Style
Open front case (Although pressure chamber is designed separate from the case which allows the product to perform as a Solid Front)
Weather Protection
IP65
Max. Process Temperature
175°F (80°C)
Mounting
Direct, Panel (STD.), Pipe Mount, Surface Mount (OPT.)
Wetted Material
Stainless steel or Aluminum with Buna, Viton or EPDM O-rings/Diaphragm
