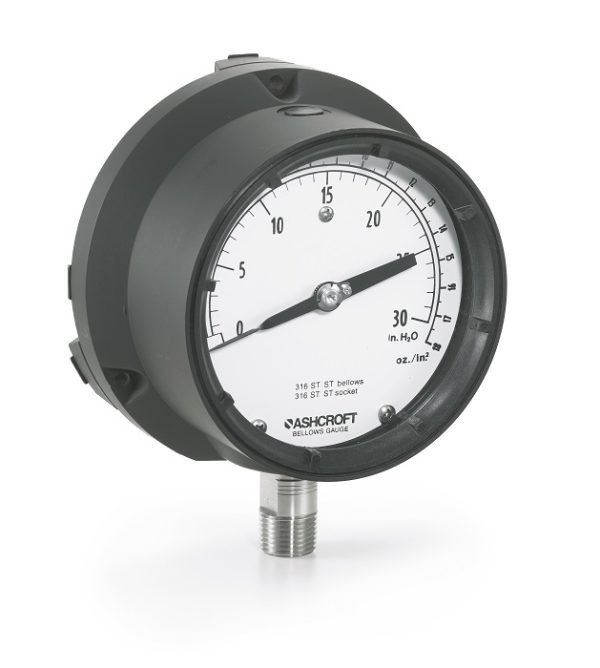

1189 Low Pressure Bellows Gauge
The Ashcroft® 1189 bellows gauge is used when a ASME style low pressure gauge with an aluminum case is required. Its highly sensitive system and standard product features are available to meet many process applications. Available with diaphragm seals, this is an ideal instrument solution for many installation points.
Key Features:
- Inches of water ranges
- Bronze, 316 stainless steel or monel wetted parts
- Available with diaphragm seals
Applications:
Process Market:
Oil & Gas
Chemical and Petrochemical Plants
Water and Wastewater Pressure Control
Industrial Market:
Equipment Skids
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±2%-1%-2% of span (ASME B40.100 Grade A)
Size
4 1/2"
6"
Process Connection Size
¼ NPT Male, ½ NPT Male
Process Connection Location
Lower
Pressure Ranges
10 in H2O to 10 psi including Vacuum and Compound
Case Style
Solid Front
Window
Glass (STD.), Shatter Proof Glass (OPT.)
Weather Protection
Dry case: Case not sealed, recommended for weather protected environment only
Mounting
Stem, Surface
Movement
Adjustable
Dampening
Throttle screw, dampeners, capillary, diaphragm seals and snubbers
Certifications & Approvals
CE
UKCA
Data Sheets:
Instruction Manuals:
Product/Technical Information:
