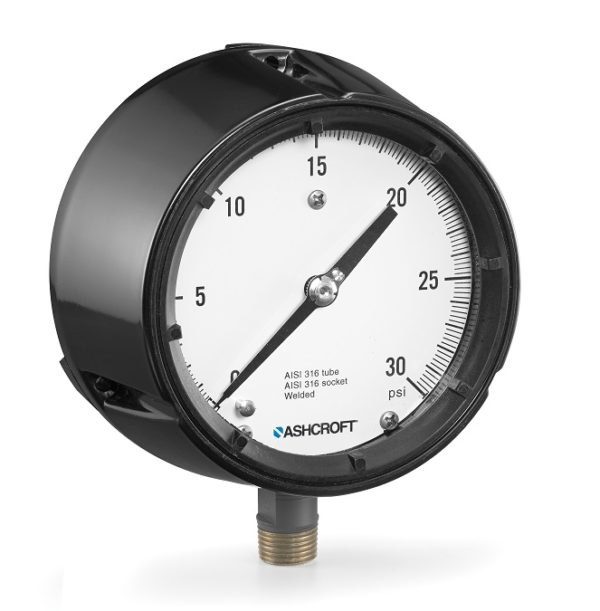

1220 Pressure Gauge
The Ashcroft® 1220 is an economical ASME style pressure gauge with a 4 1/2″ thru 81/2″ sizes for hard to read applications. The 1220 has a solid front case design, 1% accuracy and numerous protective features for corrosive or other challenging media applications.
Key Features:
- Wide selection of Bourdon tube materials, pressure connections and pressure ranges
- Solid-front case design for safety
- Epoxy-coated system offers superior corrosion resistance
- PLUS!™ Performance (option)
Applications:
Industrial Market:
Deionized Water
Refrigeration
Specialized OEM Equipment
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±1.0% of span (ASME B40.100 Grade 1A)
Size
4 1/2 ̋, 6 ̋, 8 1/2"
Process Connection Size
1/2 NPT Male
1/4 NPT Male
Process Connection Location
Lower, Back
Pressure Ranges
Vacuum, compound, 30,000 psi
Case Style
Solid Front
Weather Protection
Dry case: Case not sealed, recommended for weather protected environment only
Movement
Adjustable
Window
Glass
Mounting
flush
Stem or Surface
Dampening
PLUS!™ Performance, throttle screw
Data Sheets:
Instruction Manuals:
Product/Technical Information:
