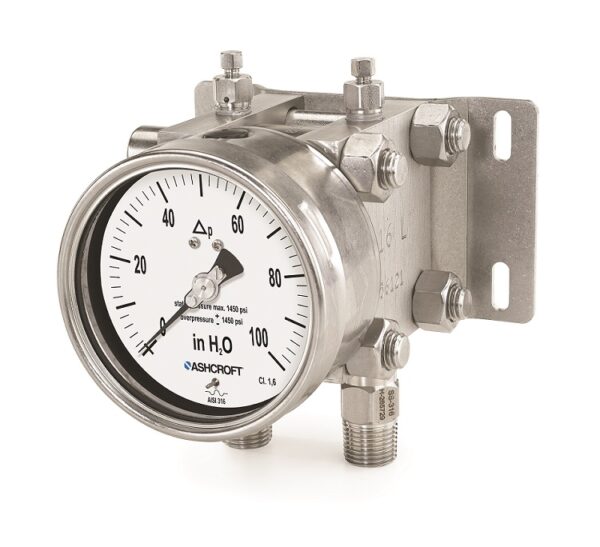

F5504 Differential Pressure Gauge
The Ashcroft® F5504 differential pressure gauge is a good choice for differential pressure monitoring when high static pressure and low differential pressure is a requirement. These stainless steel case gauges provide reliability, and corrosion resistance while being able to operate safely at extremely high static pressures. The F5504 is the ideal solution for monitoring differential pressures in applications such as flow measurement, tank level, filter monitoring, gas blanketing and leak detection.
Key Features:
- Robust housing
- Selection of wetted materials
- Extremely High static pressure limits
- External zero adjustment
- Flow measurement dial (optional)
- Electric contacts (optional) for process monitoring and control
- NACE compliant (optional)
Applications:
Process Market:
Refineries
Power Plants
Chemical and Petrochemical Plants
Water and Wastewater Pressure Control
Mining and Metals
Marine and offshore
Filter, Level and Flow Measurement
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
1.6% (Monel 2.5%)
Size
100 mm, 160 mm
Static Pressure
1,450 PSI Standard for all Ranges
3,625 psi (optional for ranges 160 inches of water to 600 psi)
5,800 psi (optional for ranges 160 inches of water to 600 psi)
Process Connection Size
G¼B Female
1/2 NPT
1/4 NPT
Process Connection Location
Lower
Case Style
Open front case (Although pressure chamber is designed separate from the case)
Pressure Ranges
0 - 24 in. H2O to 600 psid
Weather Protection
IP67
Window
Safety Glass
Max. Process Temperature
185°F (85°C)
Mounting
Direct (STD.)
Wall, front or 2˝ pipe mounting (OPT.)
Wetted Material
316L Stainless Steel
Hastelloy-C
Monel
