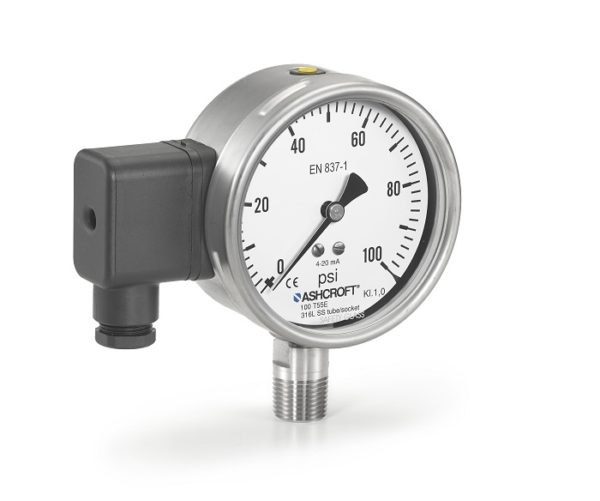

T5500E Process Gauge with Output
The Ashcroft® T5500E process gauge with integrated pressure transmitter output combines a pressure gauge and pressure transmitter; reducing costs for multiple instruments. This model can be integrated into safety and data acquisition systems. An ideal product when pressure measurement needs to be monitored or controlled.
Key Features:
- Rugged enclosure
- Choices of units of measure
- Integral transmitter
- PLUS!™ Performance (option)
Applications:
Process Applications:
Refineries
Pulp and Paper
Power Plants
Pressure Measurement
Monitoring & Control
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±0.5% of span
Size
4" 100 mm
Process Connection Size
¼ NPT Male, ½ NPT Male
Process Connection Location
Back
Pressure Ranges
-30˝ Hg/0 to 0/20,000 psi (-1/0 to 0/1600 bar)
Case Style
Open Front
Window
Safety glass (STD.) Acrylic (OPT.)
Weather Protection
IP65
Mounting
Stem or Surface
Movement
Adjustable
Dampening
PLUS!™ Performance, throttle screw, dampeners, and snubber
Certifications & Approvals
Marking II 2 GD c IIC Tx: File No. 35134585 at notified body 0044, TÜV NORD CERT (only with safety glass or polycarbonate glass)
Instruction Manuals:
Don't see what you are looking for? Click here to request more drawings.
Resources & Tools
Min/Max Guide
IMPORTANT! When selecting a diaphragm seal or isolation ring, refer to the Min/Max Guide (PI page) for compatibility with this gauge.
Materials Selector
Use the selector to review compatible wetted materials and requirements of your application.
Unit Converter
Need to convert measurement units? Check out our quick and easy tool to convert pressure, temperature and flow units of measure.
Product Information
To learn more about the technical details for options available, review our product information (PI) pages.
