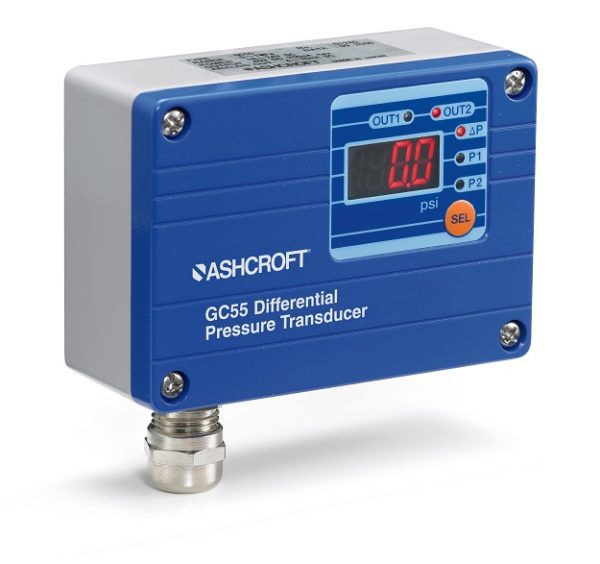

GC55 Wet/Wet Indicating Differential Pressure Transducer with Switch Outputs
The Ashcroft® GC55 is a high-differential pressure transducer incorporating two thin film sensors. Its LED display and analog output allow for both local and remote readings. An ideal device for monitoring or controlling a variety of wet or dry pressure media.
Key Features:
- Robust, cast-aluminum enclosure
- 3-in-1 capability: digital pressure gauge, switch and transducer
- +/- 0.5% of span accuracy
- Differential pressure ranges from 75 to 300 psid
- 4-20mA or 1-5 Vdc output
- Min. / max. feature records low and high pressure events
- Programmable switch setting and analog scaling
- Bright LED display; pressure and switch status
- Internal “push button” settings allow for field selection between the DP value and the line pressure readings from either sensor
- External “push-button” allows user to display P1, P2 or DP without opening cover
- All stainless steel wetted parts
- CRN approved
Applications:
Industrial and OEM Applications:
Pump Controls
Compressor Control
Process Applications:
Filter Monitoring
HVAC Hydronic Cooling / Heating Systems
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
(24°C (75°F)
Accuracy
±0.5% of span Includes linearity, hysteresis and repeatability
Stability
±0.5%/year
Outputs
0.1-5 Vdc (3 Wire)
4-20 mA (2 Wire)
Pressure Ranges
Differential: 75 to 300 psid
Wetted Material
Diaphragm: 17-4PH Stainless steel
Process Connection: 304 Stainless steel
Non-Wetted Materials
Enclosure: Aluminum
Ingress Rating
IP66
Process Connection
1/8 NPT Female
Shock & Vibration Resistance
10 g’s 16ms, 5 g’s 150Hz
