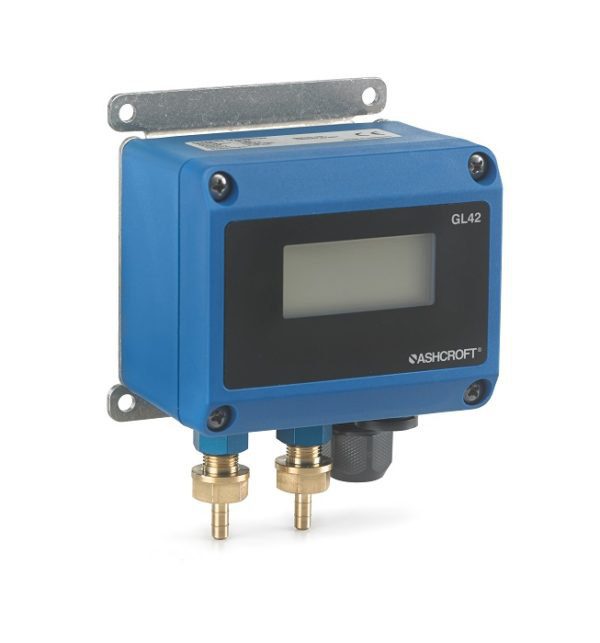

GL42 Indicating Differential Pressure Transmitter
The Ashcroft® GL42 low differential indicating pressure transmitter is used for measurement and control of extremely low pressures and flow. A variable capacitance sensor with patented Si-Glas™ technology, ensures high sensitivity and performance. The GL42 provides both local and remote readings and reliable low pressure measurement in HVAC/R and other critical environments.
Key Features:
- Field selectable units of measure
- Large, field-adjustable 4-digit LCD display
- Adjustable display response time
- Excellent overpressure protection
- Ranges available down to 0.1 in. H2O
- CE Mark standard
Applications:
Process Applications:
HVAC/R
Building Energy Management
Comfort Control Systems
Critical Environments
Fume Hood Control
Laboratory / Clean Room
Hospital Room Pressurization
Filter Monitoring
Laminar Flow
Flow Measurement
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
77°F (25°C)
Accuracy
±0.5%, ±1.0% of span (Terminal Point Method: includes non-linearity, hysteresis, non-repeatability, zero offset and span setting errors)
Stability
±0.5% Span/year at reference conditions
Pressure Connection
1/8 NPT Female, 1/4 Barbed Male
Pressure Ranges
±0.10 in. H2O to ±15.00 in. H2O (bidirectional)
0.10 in. H2O to 25.00 in. H2O (unidirectional)
Wetted Material
Media: Clean, dry air/gases compatible with Aluminum, Titanium, PBT, Buna, Glass, Gold, Silicone Rubber, Silicon, Silicone RTV & Brass. NOT FOR USE WITH LIQUIDS
Non-Wetted Materials
Enclosure: Nylon
Outputs
4-20 mA
Enclosure Ratings
IP65
Mounting
Wall mount, DIN rail or panel mount
