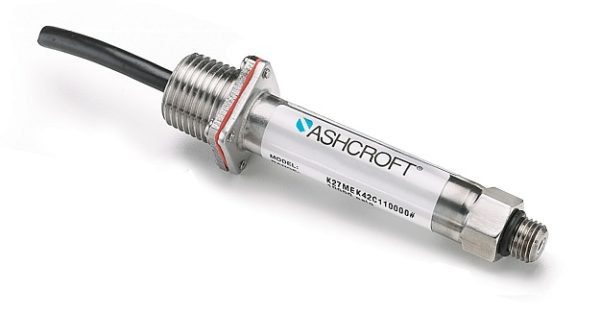

K2 Pressure Transducer with Millivolt Output
The Ashcroft K2 shares the same sensor platform as the model K1, except it is offered with a millivolt output option. The all stainless steel CVD sensor design eliminates signal instability, drift, with excellent shock or vibration resistance. A perfect choice when long-term stability and high repeatability are needed.
Key Features:
- Pressure ranges from vacuum to 20,000 psi
- +/-0.50% or +/- 1.0% of span accuracy
- Millivolt outputs
- NEMA 4X ingress protection
- All stainless steel wetted materials
- Highly configurable – broad selection of pressure ranges, output signals, pressure connections and electrical
- terminations
- CRN approved
Applications:
Industrial and OEM Applications:
Machine Tool
Construction Equipment
Hydraulic and Pneumatic Systems
Process Applications:
Hydraulic
Refrigeration
HVAC
Pump Control
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
68°F (20°C)
Accuracy
±1.00% of span or ±0.50% (Option)
Terminal Point Method: includes non-linearity, hysteresis, nonrepeatability, zero offset and span
Best Fit Straight Line (BFSL)
±0.25% or ±0.40% of span
Stability
±0.5% Span/year at reference conditions
Durability
>10 million cycles
Pressure Ranges
Vacuum to 20,000 psi
Wetted Material
Diaphragm: 17-4PH Stainless steel
Process Connection: 304 Stainless steel
Non-Wetted Materials
304 Stainless Steel
Outputs
2mV/V, 3mV/V, 10mV/V, 20mV/V
