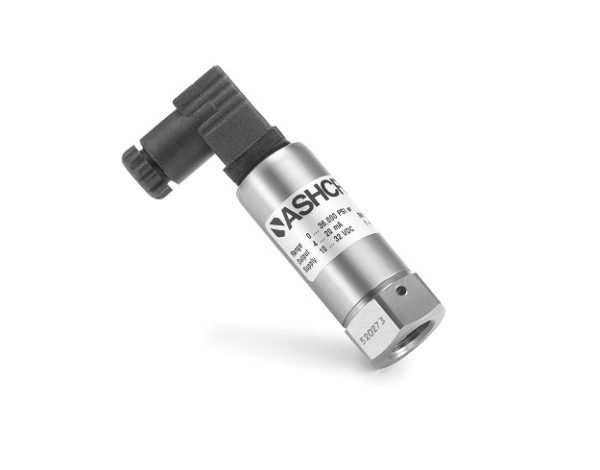

KM46 High Pressure Transducer
The Ashcroft® KM46 high pressure transducer is the ideal choice to satisfy ultra-high pressure measurement requirements. While designed to withstand extreme pressure this transducer is still both light and compact thanks to its Titanium sensor construction. The KM46 can measure pressure up to 72,000 psi while maintaining outstanding durability.
Key Features:
- Pressure ranges from 30,000 to 72,000 psi
- +/- 1.0% of span accuracy
- Titanium sensor and pressure connection
- A choice of pressure connections geared specifically for high pressure installations
- Voltage and 4-20mA output options
- Ingress Protection: up to IP67 (IP69K option)
- CE approved
Applications:
Industrial Applications:
Water Jetting/Blasting
High Pressure Cleaning
Test Stands
Pressure Vessel Leak Testing
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
72ºF ±2ºF (21ºC ±1ºC)
Accuracy
±1.00% of span - includes: nonlinearity, hysteresis, repeatability,zero-offset and final-offset
Best Fit Straight Line (BFSL)
±0.30% of span
Total Error Band Accuracy
±2.0 % of span from -4°F to 185°F (-20°C to 85°C
Total Error Band Accuracy: includes the combined effects of non-linearity (Terminal Point Method), hysteresis, non-repeatability, temperature and zero offset and span setting errors
Stability
≤ ±0.20% of span/year
Pressure Ranges
30,000 to 72,000 psi
Outputs
10 = 0-10 Vdc
15 = 1-5 Vdc
42 = 4-20mA
Wetted Material
Titanium
Non-Wetted Materials
304 Stainless Steel
Certifications & Approvals
CE
Data Sheets:
Instruction Manuals:
