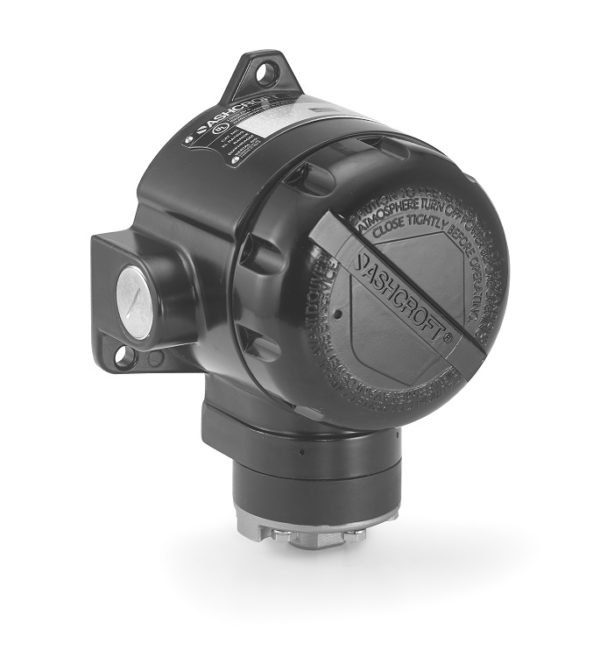

B-Series NEMA 7/9 Explosion Proof Pressure Switch
The Ashcroft® B7 NEMA 7/9 pressure switch is designed for use in virtually all process, industrial and many OEM applications. This model provides accuracy, reliability and long-cycle life, while the rugged, explosion-proof housing provides superior protection. Ideal for satisfying requirements for pressure control, safety shutdown or alarm operations in hazardous applications.
Key Features:
- Explosion-proof enclosure provides uncompromising protection
- Adjustable from 15%-100% of range
- Fixed or limited adjustable deadband
- Wide selection of switch elements
- Stainless Steel, Buna, Viton, Teflon and Monel diaphragms available for compatibility
- Ranges from vacuum to 3000 psi
- 316L Stainless Steel housing available
- External locking screw (ATEX / IECEx approval only)
- UL, CSA, ATEX and IECEx hazardous approvals
- CE, CRN and 3A approved
- SIL 3 Capable
- RoHS Compliant
- NSF-61 Compliant
Applications:
Process Market:
Offshore Oil Rigs
Chemical and Petrochemical Plants
Pulp and Paper Mills
Power Plants
Steel Mills
Water and Sewage Treatment Facilities
Industrial Market:
Pumps, Compressors and Turbines
Boilers and Burners
Degreasers and Evaporators
Recovery Systems
Reverse Osmosis Systems and Filters
Food Processing
Ground Support Equipment
Hydraulic and Lubrication Systems
Heating and Air Conditioning
Marine Equipment
Specialized OEM Equipment
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±1% of full span
Setpoint
Single setpoint - Factory set or field adjustable
Deadband
Fixed or limited adjustable
Enclosure Ratings
NEMA 7/9, IP66
Enclosure Material
Epoxy coated aluminum or 316 stainless steel
Pressure Connection
¼ NPT Female (STD.)
½ NPT Female, ¼ NPT Female & ½ NPT Male combo (OPT.)
Pressure Ranges
Vacuum to 3,000 psi
Electrical Termination
½ NPT Female, M20 X 1.5 (OPT.)
Setpoint Repeatability (Accuracy)
±1% of span (Additional setpoint shift of ±1% of range per 50°F from initial setpoint set at 70°F typical)
Diaphragm/Actuator Material
Buna-N®, Teflon®, Viton®, 316L stainless steel, or Monel®
Ambient Temperature Range
–20°F to 150°F (–28°C to 65°C)
Process Temperature
0°F to 150°F (Buna N or Teflon diaphragm)
0°F to 300°F (Stainless steel or Monel diaphragm)
20°F to 300°F (Viton diaphragm)
Contact Ashcroft
