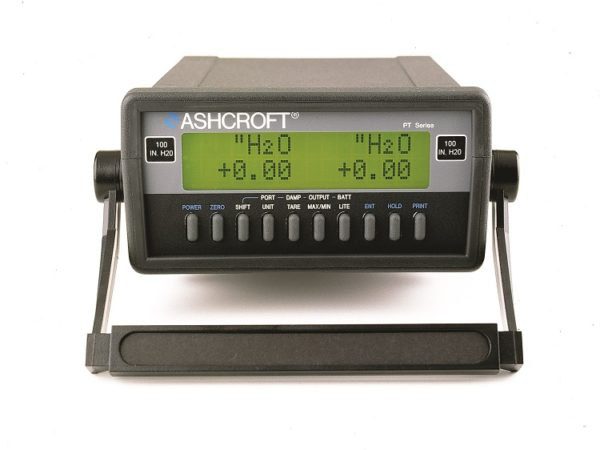

PT-1 Digital Pressure Indicator
The Ashcroft® PT-1 bench-top digital calibrator is used in measurement applications requiring highly accurate secondary transfer standards. The PT-1 includes one or two permanently installed pressure or temperature sensors.
Key Features:
- Single or dual pressure measurement display
- Pressure modules are permanently installed
- Digital interface capability via RS232 interface
- Large LCD display
- Programmable damping, zero, engineering unit selection, tare and Min/Max memory
Applications:
Industrial Market:
- Test and Measurement
- Calibration Laboratories
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
Low pressure Modules: ±0.1%, ±0.06, ±0.7% of span
Medium/high Pressure modules ±0.025%, ±0.05%, ±0.1% of span
Pressure Ranges
0/0.25 in H20 in. H2O through 0/10,000 psi
LCD Display
Large display
Operating Temperature Range
20°F to120°F (0°C to 49°C)
32°F to 120°F (0°C to 49°C)
Store Temperature
4°F to 158°F (-20°C to 70°C)
Resolution
±0.002% of span (max.)
